Multiparameter Meters

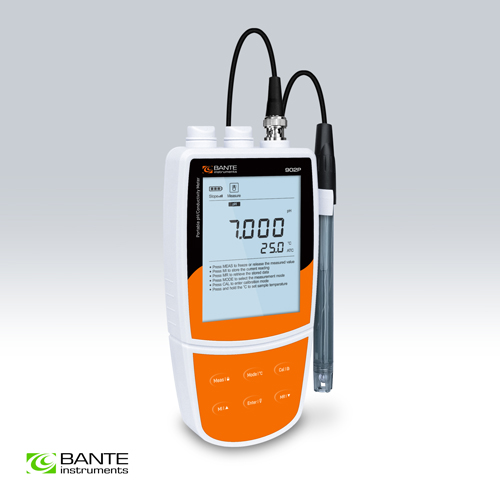

Bante902P Portable pH/Conductivity/TDS/Salinity Meter
High-performance portable pH/conductivity meter contains 6 measurement modes, suitable for measuring pH, ORP, conductivity, TDS, salinity and resistivity.
Features:
pH
? 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
? Automatic electrode diagnosis shows the pH slope and zero offset.
ORP
? 1 point offset calibration allows adjusting the displayed value to a known standard.
? Relative and absolute millivolt modes ensure the reliable ORP measurements.
Conductivity/TDS/Salinity/Resistivity
? 1 to 5 points calibration with automatic recognition for conductivity standards.
? Automatic electrode diagnosis shows the calibration points and factor.
? Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear and
pure water compensations, seawater and practical salinity measurement modes.
Other Features
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Calibration due alarm reminds user to calibrate the meter regularly.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the number of calibration points, stability criteria, temperature unit,
date and time, etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 500 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
? Multimode power scheme (batteries, power adapter, USB port) ensures the smooth operation
of the meter.
Model | Bante902P | |
pH | ||
Range | -2.000 to 20.000 pH | |
Resolution | 0.001 / 0.01 / 0.1, selectable | |
Accuracy | ±0.002 pH | |
Calibration | 1 to 5 points | |
pH Buffer Options | USA / NIST / DIN / 2 custom buffers | |
ORP | ||
Range | -1999.9 to 1999.9 mV | |
Resolution | 0.1 / 1, selectable | |
Accuracy | ±0.2 mV | |
Calibration | 1 point | |
Measurement Modes | Relative / Absolute mV | |
Conductivity | ||
Range | 0.01 μS/cm to 200.0 mS/cm | |
Resolution | 0.001, 0.01, 0.1, 1, automatic | |
Accuracy | ±0.5% F.S. | |
Calibration | 1 to 5 points | |
Calibration Solutions | 10 μS / 84 μS / 1413 μS / 12.88 mS / 111.8 mS | |
Temperature Coefficient | 0.0 to 10.0%/°C | |
Pure Water Compensation | Yes | |
Reference Temperature | 20 / 25°C | |
Cell Constant | K=0.1 / 1 / 10 / Custom | |
TDS | ||
Range | 0.01 ppm to 200.0 ppt | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±1% F.S. | |
TDS Conversion Factor | 0.1 to 1.0 (default 0.5) | |
Salinity | ||
Range | 0.00 to 80.00 ppt / 0.00 to 42.00 psu | |
Resolution | 0.01 | |
Accuracy | ±1% F.S. | |
Resistivity | ||
Range | 0.00 to 20.00 MΩ | |
Resolution | 0.01 | |
Accuracy | ±1% F.S. | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Stability Criteria | Low / High | |
Calibration Due Alarm | 1 to 31 days or off | |
Auto-Power Off | 10 / 20 / 30 minutes after last key pressed | |
Memory | Stores up to 500 data sets | |
Output | USB communication interface | |
Connector | BNC, 6-pin mini-DIN, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |

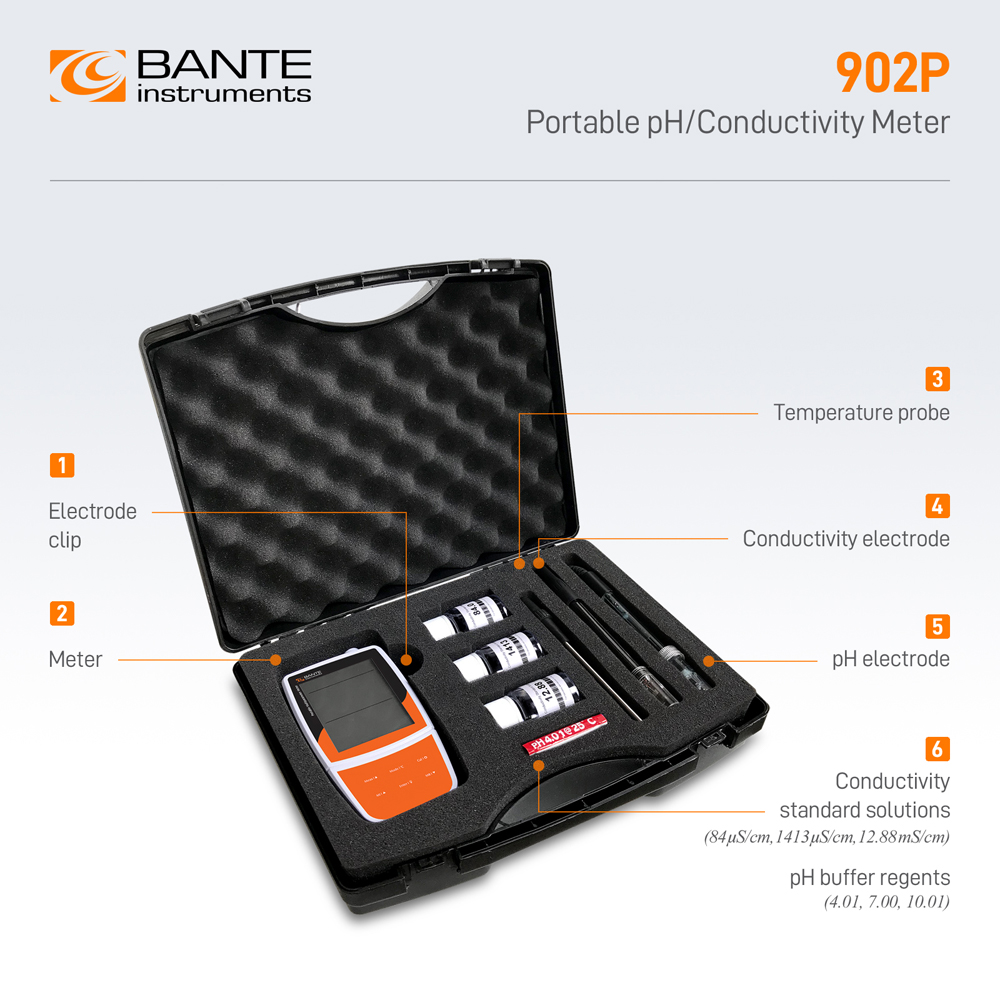

Ordering Code | Meter Includes |
Bante902P | E201-BNC pH electrode |
CON-1 conductivity electrode | |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer reagents | |
Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm | |
| Electrode clip | |

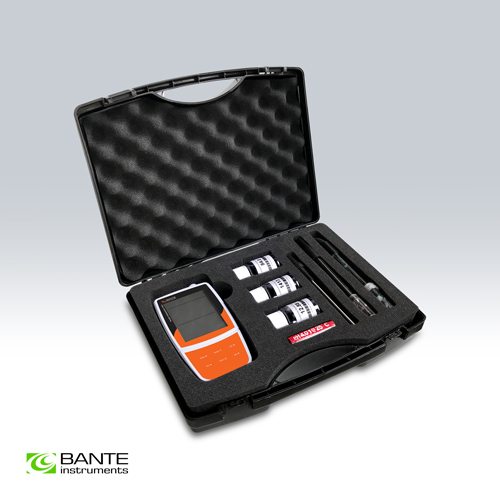

Carrying case | |
Bante902P-UK | P11 glass pH electrode |
K10 conductivity electrode | |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer reagents | |
Conductivity standard solutions 84 μS/cm, 1413 μS/cm, 12.88 mS/cm | |
| Electrode clip | |
Carrying case |
| Items | Description |
| E201-BNC pH Electrode | For measuring general water samples |
| E202-BNC pH Electrode | For measuring semisolid and gel samples |
| E203-BNC pH Electrode | For outdoor use |
| E205-BNC pH Electrode | For piercing and measuring soft solids |
| E206-BNC pH Electrode | For measuring micro-volume samples |
| E207-BNC pH Electrode | For measuring non-aqueous samples |
| E208-BNC pH Electrode | For measuring wastewater |
| E209-BNC pH Electrode | For measuring samples with hydrofluoric acid |
| E210-BNC pH Electrode | For measuring high temperature samples |
| E211-BNC pH Electrode | For measuring pure water |
| P11 pH Electrode | For measuring mildly corrosive samples |
| E501 ORP Electrode | For measuring samples with strong redox potential |
| E502 ORP Electrode | For measuring samples with weak redox potential |
| CON-0.1 Conductivity Electrode | For measuring pure water / low conductivity liquids |
| CON-1 Conductivity Electrode | For measuring general liquids |
| CON-10 Conductivity Electrode | For measuring seawater / high conductivity liquids |
| Conductivity Flow Cell | For pure water and ultrapure water measurements |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
| ORP Standard Solution | For calibrating ORP electrode |
| Conductivity Standard Solutions | For calibrating conductivity electrode |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
Bante902P | 35 × 10 × 30 cm, 1.5 kg |
Bante902P-UK | 35 × 10 × 30 cm, 1.5 kg |
